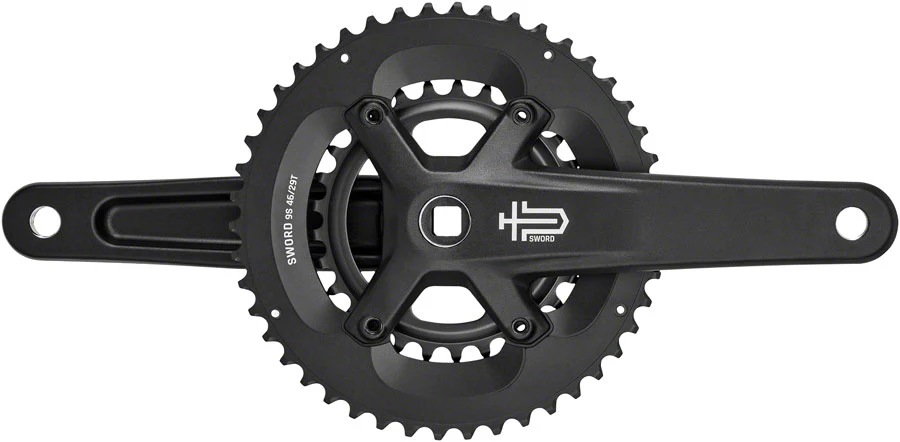

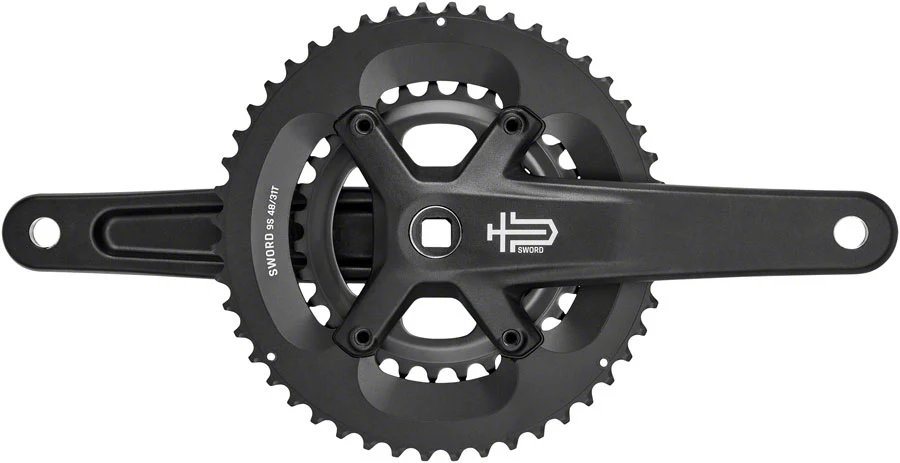

The Sword Black 2x crankset brings gravel oriented gear ratios aesthetics and chainline to a square taper bottom bracket platform. A wide 17t gap between chainrings extends your gear range to help you extend your ride no matter the terrain. And it can be converted from 2x to 1x simply by installing a single chain retaining ring in the outer chainring position.

Compatible with 68x113mm JIS square taper bottom bracket (sold separately)

110/80mm Asymmetric 4-bolt BCD

Wide gear range designed to be used with Sword Black shifters and front derailleur

Aluminum crank arms

Steel inner chainring and aluminum outer chainring

Wide 47mm chainline

Rings	46/29, 48/31
Number of Chainrings	Double
Drivetrain Speeds	9
Chainring BCD	80
Color	Black
Crank Length (mm)	165, 170, 172.5, 175
Crank Intended Use	Road
BB Included	No
Pedal Spindle	9/16"
Spindle Interface Type	Square Taper JIS
Defined Color	Black
