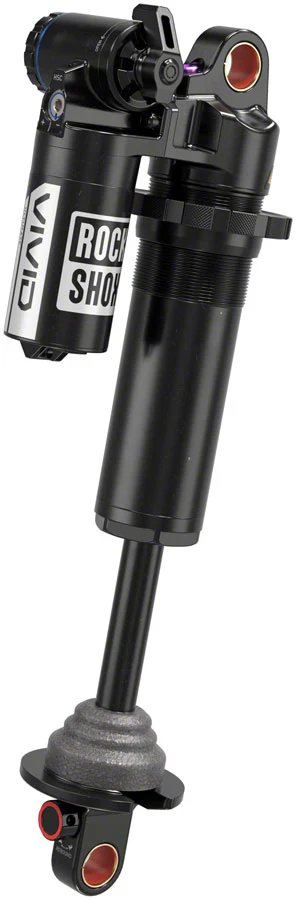

The world’s best gravity racers need it. The roughest tracks demand it. Vivid Coil Ultimate DH is unmatched in downhill performance and tunability. Easily dial in the perfect ride feel with the TouchDown RC2 position-sensitive damper. Independent High and Low Speed Compression adjustments provide unreal sensitivity off-the-top support and control in the mid-stroke and Adjustable Hydraulic Bottom Out to cushion the harshest landings. It’s the unmistakable feel of coil evolved with premium technology to give you world-class suspension performance.

TouchDown RC2T damper features sensitivity and suppleness off the top while remaining stable and supportive throughout its travel

Adjustable Hydraulic Bottom Out features five compression settings to customize the amount of bottom-out resistance in the last 20% of travel for reliable performance and tunability to resist the harsh hits

Rebound adjustment independent High and Low Speed Compression adjustment and an easy-to-adjust Threshold Lever for added pedaling efficiency

Soft stroke-specific bottom-out bumper accommodates the range of stroke lengths allowing for full travel

20 clicks of rebound adjustment offer a wide range of tunability

Coil spring is not included (Sold Separately)

Stroke (mm)	75
Lockout Switch	Shock Mounted Switch
Eyelet Diameter (mm)	12.7, Trunnion, 12.7
External Adjustments	Low Speed Compression Damping
Positive Spring	Coil
Eye to eye length (mm)	225, 250
keyword search	RockShox Model Year 25
Stroke	70mm
Eye	Eye-250mm
