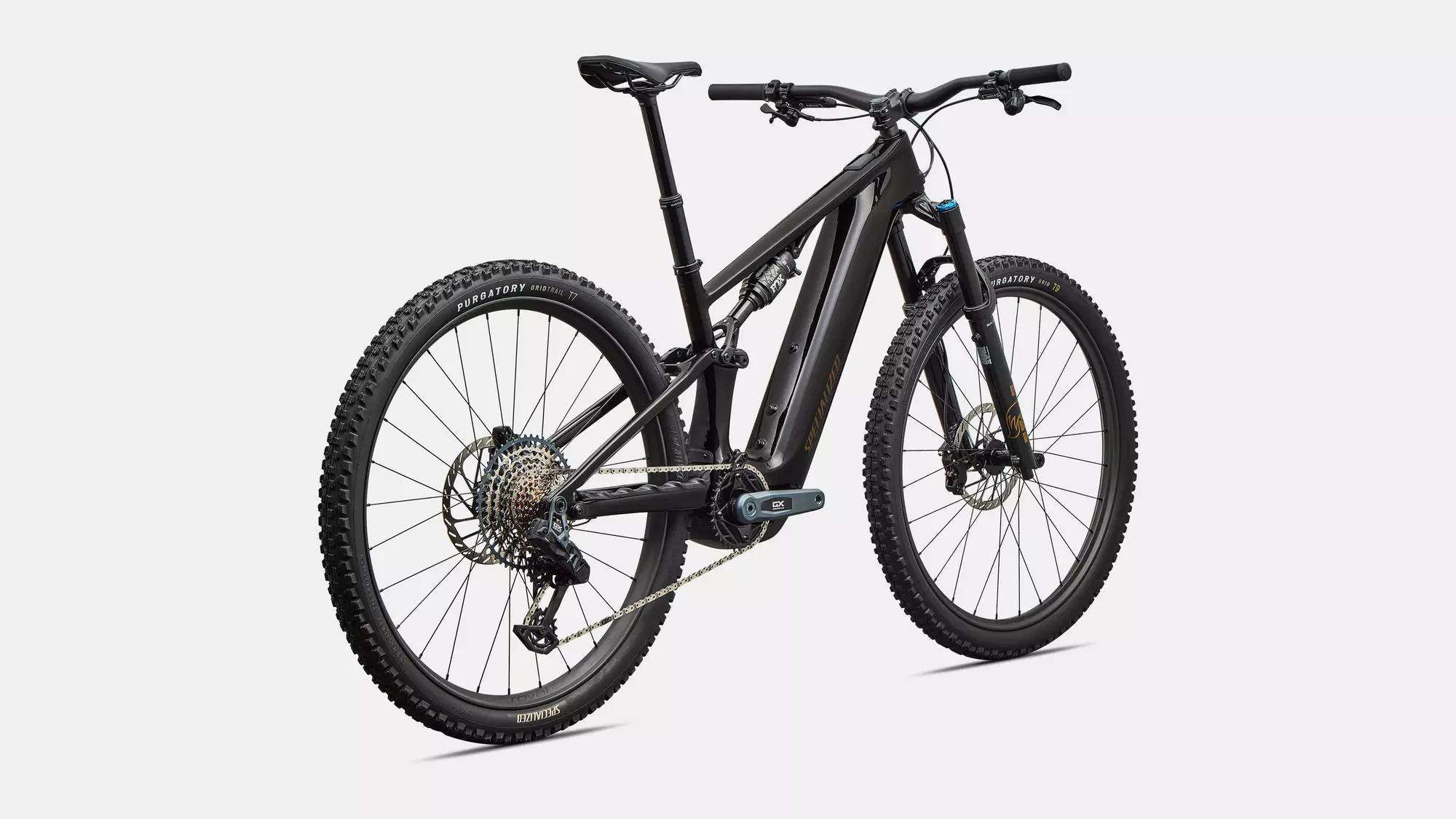

Turbo Levo R Expert
SuperNatural Power, Agility, and Range
Levo R
Nothing this powerful has ever felt this agile. Light, tight, and ready to fight, Levo R channels the SuperNatural power of Levo 4 but sheds its manners. Like a rally car unleashed on dirt, you and Levo R become one, stealing endless flow and finishing with the grin of a thief who slipped away clean.
This is Electric Rally.
Technical Specifications
E-Bike
-
Motor
Specialized 3.1 Motor, 105Nm torque, 810W power
-
Battery
Specialized Turbo X2 840Wh integrated battery pack
-

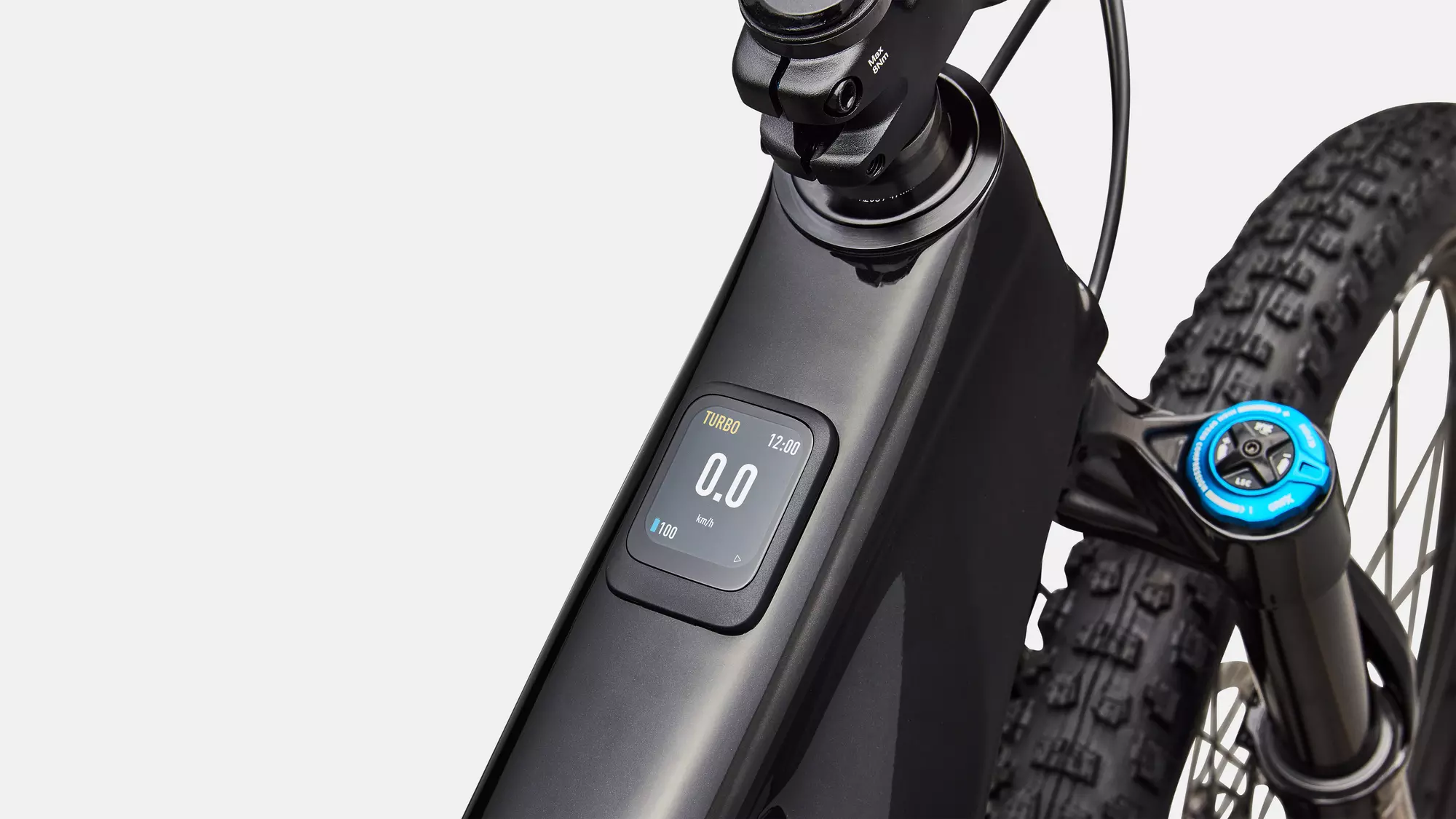

UI/Remote
Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
-
Charger
Specialized 4amp charger
Frameset
-
Frame
FACT 11m Carbon, SWAT downtube storage, 12x148mm UDH compatible rear dropout, side entry battery, adjustable geometry, 130mm of travel
-
Seat Binder
Alloy, 38.6mm
Suspension
-

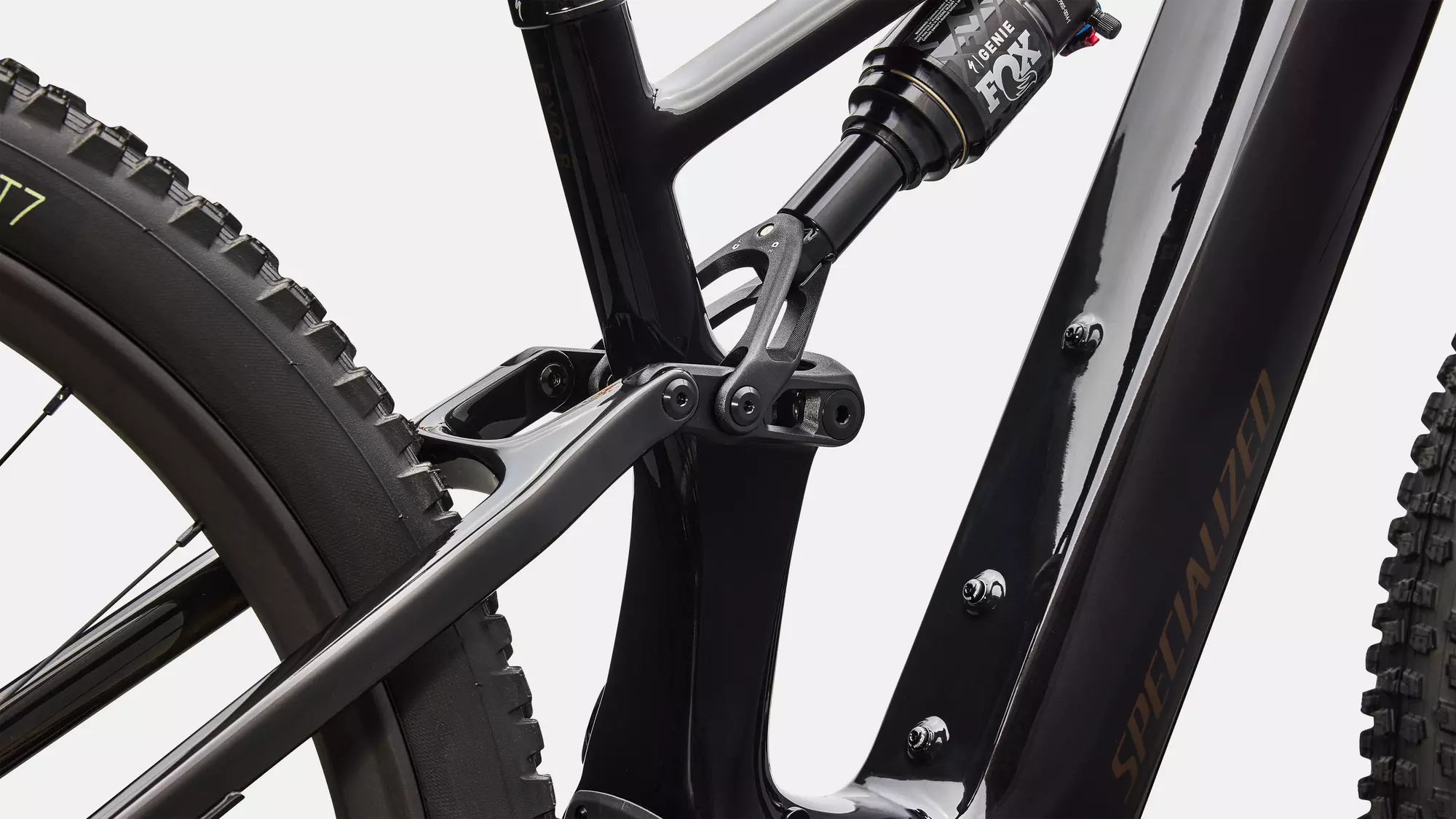

Rear Shock
FOX FLOAT Performance Elite GENIE, Ride Dynamics Developed, 2-position compression adjust, 190x45mm
-
Fork
FOX 36 SL Performance Elite, GRIP X Damper, HSC, LSC, LSR adjust, 140mm travel, 44mm offset, 15x110mm
Brakes
-
Front Brake
SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 200mm rotor
-
Rear Brake
SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 200mm rotor
Drivetrain
-
Shift Levers
SRAM AXS POD Controller
-
Rear Derailleur
SRAM GX Eagle AXS Transmission
-
Cassette
SRAM GX Transmission, XS 1275, 10-52t
-
Chain
SRAM GX Eagle Transmission 12-Speed Flattop Chain
-

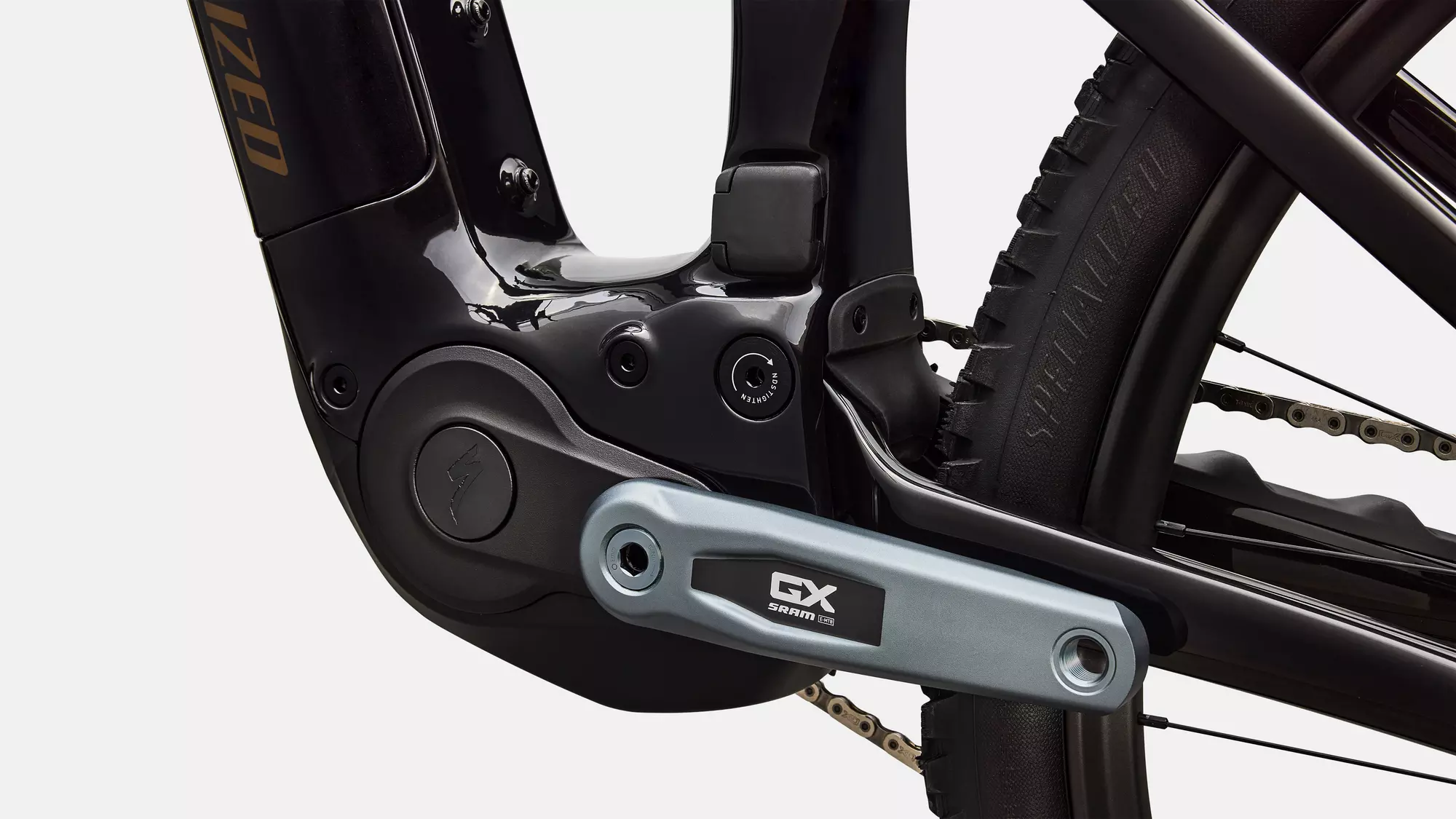

Crankset
SRAM GX Eagle, BROSE/ISIS, 160mm, 32T
-
Chainrings
SRAM 34t T-Type chainring, 104 BCD, steel
Wheels & Tires
-
Front Tire
Specialized Purgatory, GRID Casing, T9 Compound, 29x2.4
-
Front Wheel
Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 1/1 Hub, 15x110mm, 28H, Sapim D-Light Spokes
-
Rear Tire
Specialized Purgatory, Grid Trail Casing, T7 Compound, 29x2.4 (S1 27.5x2.4)
-
Rear Wheel
Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 1/1 Hub, 12x148mm, 32H, Sapim D-Light Spokes
-
Inner Tubes
Standard, Presta Valve

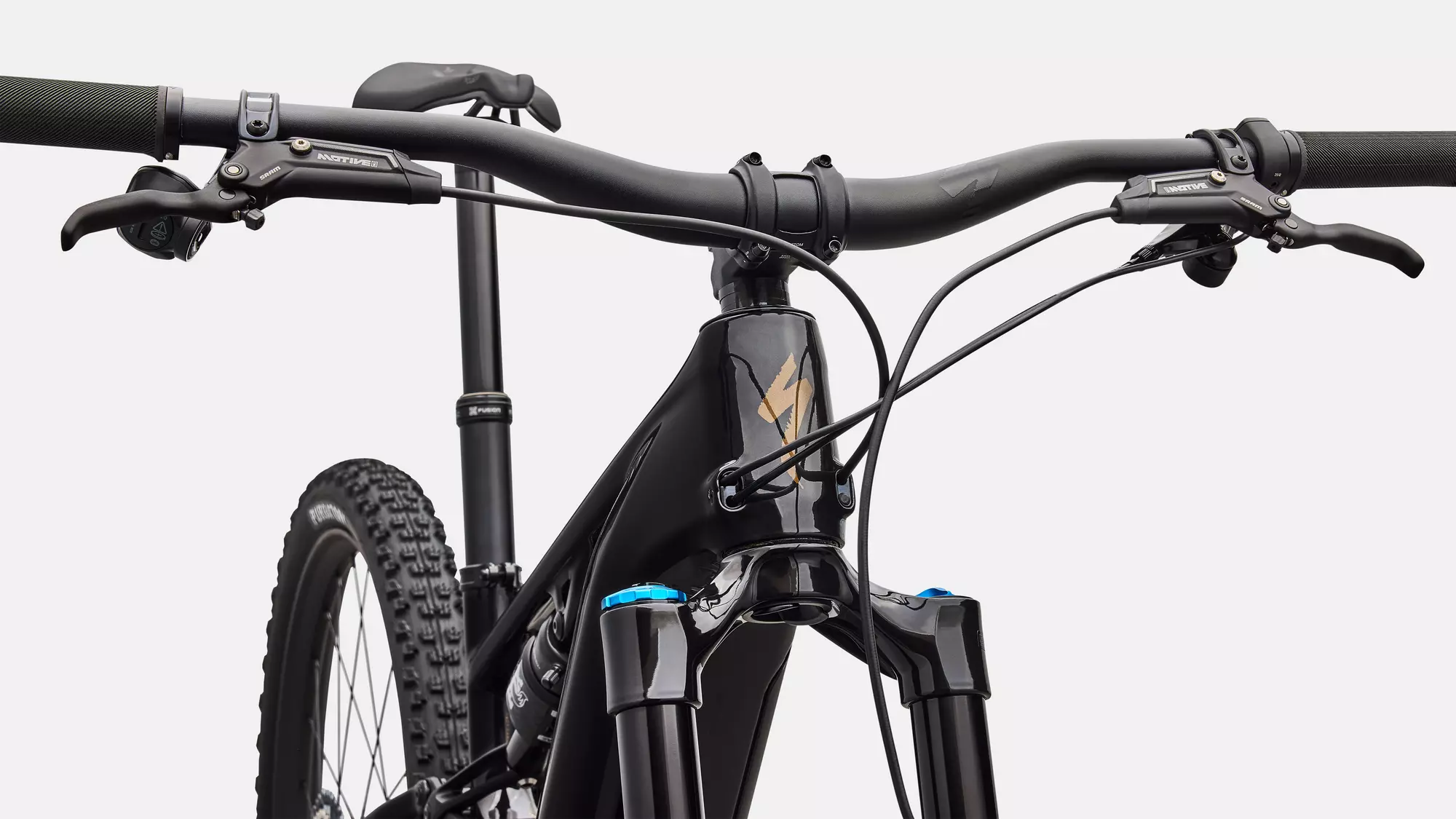

Cockpit
-
Stem
Alloy Trail Stem, 35mm bar bore
-
Handlebars
Specialized Alloy, 30mm/40mm rise, 35mm, 800mm wide
-
Grips
Specialized Trail Grips
-
Saddle
Body Geometry Power Comp, steel rails
-
SeatPost
X-Fusion Manic, 34.9, S1-S2: 125mm, S3: 150mm, S4: 170mm, S5-S6: 190mm Travel, 0mm offset
Accessories
-
SWAT
SWAT internal downtube storage
Product Details
-
Product ID
223522
-
Compliance Certification
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
Weight
-
Weight
21.76 kg (47 lb, 15.6 oz)
-
Weight Size
S3
Geometry
| Measurement | S1 - 27.5 | S2 - 29 | S3 - 29 | S4 - 29 | S5 - 29 | S6 - 29 |
|---|---|---|---|---|---|---|
| Crank Length | 160mm | 160mm | 160mm | 160mm | 160mm | 160mm |
| Handlebar Width | 800mm | 800mm | 800mm | 800mm | 800mm | 800mm |
| Stem Length | 50mm | 50mm | 50mm | 50mm | 50mm | 50mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 125mm | 125mm | 150mm | 170mm | 190mm | 190mm |
| Stack | 602mm | 607mm | 616mm | 630mm | 644mm | 657mm |
| Reach | 400mm | 420mm | 450mm | 475mm | 500mm | 525mm |
| Head-Tube Length | 95mm | 100mm | 110mm | 125mm | 140mm | 155mm |
| Head-Tube Angle | 64.8° | 65° | 65° | 65° | 65° | 65° |
| B-B Height (low BB) | 339mm | 339mm | 339mm | 339mm | 339mm | 339mm |
| B-B Drop | 36mm | 36mm | 36mm | 36mm | 36mm | 36mm |
| Trail | 128mm | 126mm | 126mm | 126mm | 126mm | 126mm |
| Fork Length (full) | 550mm | 550mm | 550mm | 550mm | 550mm | 550mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm |
| Front Center | 716mm | 736mm | 770mm | 801mm | 833mm | 863mm |
| Chainstay Length | 447mm | 447mm | 447mm | 447mm | 447mm | 447mm |
| Wheelbase | 1160mm | 1181mm | 1215mm | 1246mm | 1277mm | 1309mm |
| Top-Tube Length (horizontal) | 539mm | 560mm | 592mm | 620mm | 649mm | 677mm |
| Bike Stand-Over Height | 761mm | 763mm | 773mm | 783mm | 793mm | 803mm |
| Seat-Tube Length | 375mm | 385mm | 405mm | 425mm | 445mm | 465mm |
| Seat-Tube Angle | 77° | 77° | 77° | 77° | 77° | 77° |
| Max Seatpost Insertion | 292mm | 312mm | 210mm | 227mm | 249mm | 271mm |
| Min Seatpost Insertion | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
| Saddle Height for Effective ST Angle | 645mm | 690mm | 735mm | 780mm | 825mm | 870mm |
Tip: On mobile, swipe the table left/right to view all sizes.
